Zero-Touch PSP Development: From TCP Commands to Physical Actuators

The Problem: Manual Testing Doesn’t Scale

Developing for the PSP is an exercise in physical logistics. Every test cycle requires walking to the device, plugging in USB, copying the EBOOT, ejecting, launching the app, connecting to WiFi through a dialog, reproducing the bug, reading logs via USB again, and repeating. Each iteration takes 3–5 minutes of human time, most of it waiting. When you’re chasing a firmware deadlock that manifests after 70 decoded video frames (Entry 07), that adds up fast.

We needed to close the loop — remove the human from the iterative cycle entirely. Build the EBOOT on the host, deploy it to the PSP over WiFi, reboot the device, wait for it to come back online, navigate the UI remotely, capture the screen, and read logs — all from a script or an AI agent. No walking to the desk. No plugging in cables. No pressing buttons.

Layer 1: WiFi Auto-Connect

The PSP’s WiFi stack doesn’t connect automatically on boot. Normally, psp::net::connect_dialog() shows a system dialog that renders via the GU — which blocks the main thread and corrupts the display list if called at the wrong time.

We added a background thread (cmd_srv, priority 40) that spawns during EBOOT init. It waits 5 seconds for the WLAN hardware to initialize after a cold boot, then calls sceNetApctlConnect on saved WiFi profiles (trying profile 1 then 0) without any dialog. If the first attempt fails, it retries once more after the main loop has had time to settle.

Key discovery: psp::net::is_connected() uses an internal flag that doesn’t reflect the actual apctl state. We had to check sceNetApctlGetState directly to get reliable connection status. The is_connected() flag is only set by psp::net::init(), not by raw sceNetApctlConnect calls. This same mismatch caused a GU corruption bug when the TV Guide app launched: it checked is_connected(), got false (despite WiFi being up), called ensure_net_init() which returned immediately, then called reinit_gu_frame() — a function that is only safe after GU utility dialogs. The fix: check sceNetApctlGetState everywhere, not just in the server thread.

Layer 2: TCP Command Server

Once WiFi is up, the background thread starts a TCP server on port 9293. The protocol is intentionally simple: one text command per connection, one response, close. This makes it trivially scriptable with nc (netcat):

$ echo "ping" | nc -w 3 192.168.0.249 9293
pong

The full command set:

Layer 3: Remote Deploy + Arbitrary File Upload

The deploy command receives a raw EBOOT binary over the TCP connection. The protocol is minimal: send deploy <size>\n followed by exactly <size> bytes of EBOOT data. The server writes to a temp file first, then renames over the live EBOOT (atomic-ish on FAT32). This avoids corruption if the transfer is interrupted.

The upload command generalizes this to any file path on the Memory Stick. This is critical for updating kernel PRX plugins without USB access:

# Deploy a new EBOOT
$ SIZE=$(stat -c%s "EBOOT.PBP")
$ (echo "deploy $SIZE"; cat "EBOOT.PBP") | nc -w 30 192.168.0.249 9293
ok

# Upload a kernel PRX plugin update
$ SIZE=$(stat -c%s "oasis.prx")
$ (echo "upload $SIZE ms0:/seplugins/oasis.prx"; cat "oasis.prx") | nc -w 30 192.168.0.249 9293
ok

After deploy, reboot triggers scePowerRequestColdReset(0) — a full hardware reboot that reloads all firmware modules, CFW plugins, and the AutoStart EBOOT. This is not sceKernelLoadExec (which only restarts the app) — it’s a real power cycle. The PSP shuts down, reboots, CFW initializes, AutoStart launches OASIS OS, WiFi auto-connects, and the TCP server comes back online. Total time: ~20 seconds.

$ echo "reboot" | nc -w 3 192.168.0.249 9293
ok
$ sleep 20
$ echo "ping" | nc -w 3 192.168.0.249 9293
pong

Layer 4: Remote UI Control

Button presses are injected through a lock-free SpscQueue<InputEvent, 32> shared between the TCP server thread and the main loop. Each frame, poll_events_inner() drains the queue alongside real controller input. From the main loop’s perspective, injected events are indistinguishable from physical button presses.

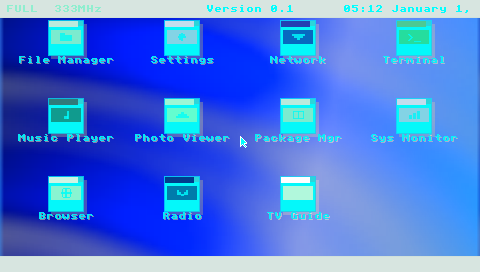

The cursor command sets absolute cursor position, which is critical for the PSP’s cursor-based dashboard — icon clicks use hit-testing at the cursor position, not d-pad grid navigation. Injected CursorMove events update the backend’s internal cursor_x/cursor_y so that subsequent ButtonPress(Confirm) events hit-test at the right coordinates.

With this, we can script complete UI workflows:

# Navigate to TV Guide (icon at row 2, col 2)
echo "cursor 290 200" | nc -w 3 192.168.0.249 9293
sleep 0.3
echo "press cross" | nc -w 3 192.168.0.249 9293

# Wait for it to load, then toggle windowed mode
sleep 5
echo "press start" | nc -w 3 192.168.0.249 9293

Layer 5: Live Framebuffer Streaming

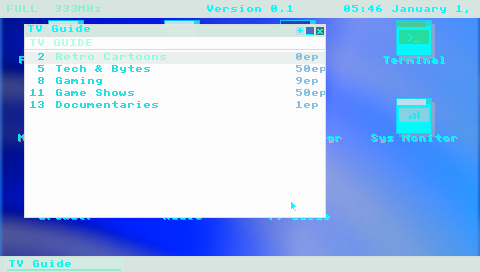

The screencap command reads the PSP’s VRAM directly at 0x44000000 (uncached framebuffer base), crops from the 512-pixel stride to 480 visible pixels per row, and streams the raw ABGR pixel data over TCP with a simple header (480 272\n).

On the host side, a one-liner converts this to a viewable PNG:

$ echo "screencap" | nc -w 5 192.168.0.249 9293 > /tmp/psp.raw
$ tail -c +9 /tmp/psp.raw | ffmpeg -y -f rawvideo \
    -pixel_format abgr -video_size 480x272 \
    -i - -update 1 /tmp/psp.png

Layer 6: Physical Hard Reset (The Last Mile)

Software reboot handles the normal case. But the PSP’s firmware occasionally hard-locks — the ME deadlock from Entry 07, GU command buffer corruption, or OOM crashes that hang the kernel. When this happens, the TCP server is unreachable and the only recovery is a physical power cycle: hold the power slider for several seconds.

The PSP has no Wake-on-LAN, no IPMI, no remote management interface. The power switch is a physical slider on the side of the device. To close the automation loop completely, we designed a hardware solution: a 12V linear actuator controlled by a USB relay module, driven by a Python script on the development PC.

How It Works

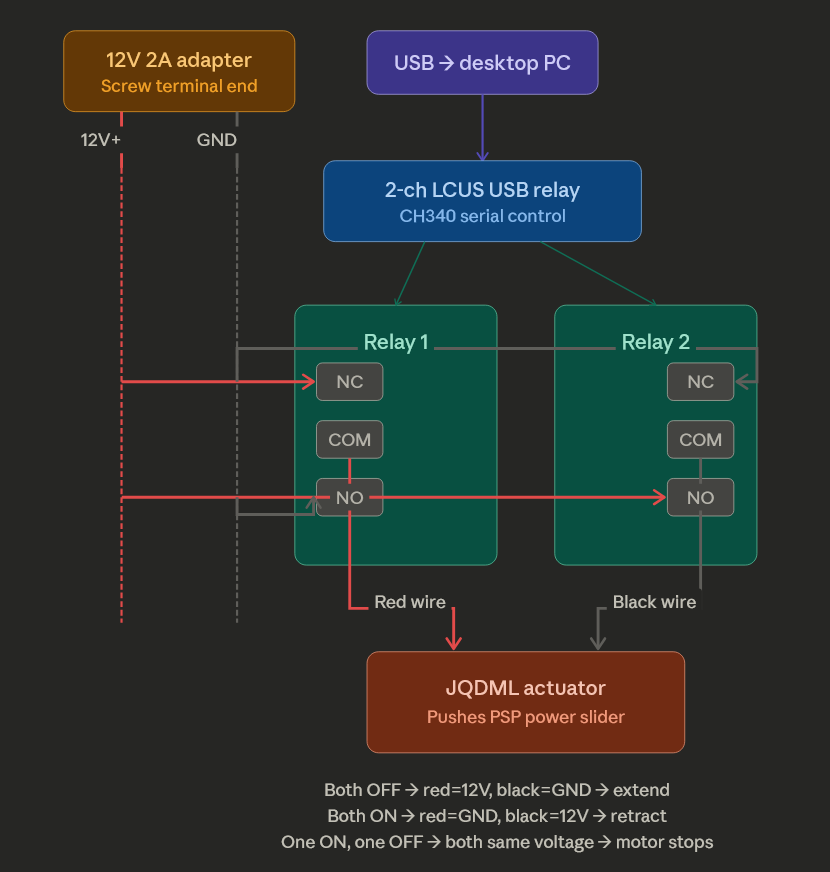

A small linear actuator (10mm stroke, 188N force) pushes the PSP’s power slider. A 2-channel USB relay module (LCUS-2 with CH340 serial chip) is wired as an H-bridge to control the actuator’s direction:

• Both relays OFF → actuator extends (pushes slider)
• Both relays ON → actuator retracts (releases slider)
• One ON, one OFF → motor stopped (both wires at same voltage)

▶ Open interactive 3D blueprint

The Python control script sends serial commands to the relay module:

$ python psp_actuator.py reboot
--- PSP HARD REBOOT ---
Phase 1: Power OFF (3/4 extend, 10s hold)
Holding 10 seconds...
Releasing slider...
Phase 2: Power ON (quick tap)
Done! PSP should be booting.

Parts List

Total cost: ~$55–65, all off-the-shelf, no soldering required.

Layer 7: Network Recovery (The Safety Net)

The actuator handles hard locks, but there’s a worse scenario: a bad EBOOT that crashes on boot. If the main application won’t start, the TCP server never comes up, and there’s no way to deploy a fix — even the actuator just power-cycles into the same crash.

ARK-4 CFW has a recovery mode: hold the R-trigger during boot and it loads a separate recovery application from ms0:/PSP/SAVEDATA/ARK_01234/RECOVERY.PBP instead of the normal boot path. All game plugins are disabled. We replaced ARK’s default recovery menu with a 154 KB Rust EBOOT that does exactly one thing: connect to WiFi and accept file uploads.

$ echo "ping" | nc -w 3 192.168.0.249 9293
pong
$ echo "status" | nc -w 3 192.168.0.249 9293
{"mode":"recovery","free_kb":23681,"max_blk_kb":23454,"wifi":true}

The recovery EBOOT uses the same TCP protocol as the main application — upload, reboot, ping, status. A bricked OASIS OS can be fixed by uploading a new EBOOT from the recovery server, then rebooting:

# PSP is in recovery mode (R-trigger held during boot)
$ SIZE=$(stat -c%s "EBOOT.PBP")
$ (echo "upload $SIZE ms0:/PSP/GAME/OASISOS/EBOOT.PBP"; cat "EBOOT.PBP") | nc -w 30 192.168.0.249 9293
ok
$ echo "reboot" | nc -w 3 192.168.0.249 9293
ok
# PSP reboots normally with fixed EBOOT

With a second actuator on the R-trigger, the full recovery sequence is automatable: power on with R-trigger held → recovery WiFi connects → upload fixed files → reboot normally. The PSP becomes unbrickable over WiFi.

Verified: uploaded a 4.8 MB EBOOT through the recovery server, rebooted, and OASIS OS came up normally — the full round trip from recovery to working application in under 30 seconds.

The Complete Automation Loop

With all seven layers in place, the full development cycle looks like this:

1. Build the EBOOT on the host (cargo psp --release)
2. Deploy over WiFi via deploy or upload (~5 seconds for 4.8MB)
3. Reboot via reboot TCP command (cold hardware reset)
4. Wait ~20 seconds for boot + AutoStart + WiFi auto-connect
5. Verify via ping, status, screencap
6. Test via cursor, press commands to navigate UI
7. Diagnose via log, logfull, screencap
8. Recover from hard locks via the physical actuator
9. Unbrick via network recovery if the EBOOT is broken (R-trigger boot + upload fix)

The unified toolkit scripts/psp_remote.py wraps all of this into simple commands, with retry logic, CRC32 deploy verification, and built-in PNG screencap (no ffmpeg dependency):

# Full cycle: build, deploy, reboot, wait, verify
$ python3 scripts/psp_remote.py cycle target/.../EBOOT.PBP

# Or build + deploy + reboot in one step
$ python3 scripts/psp_remote.py build-cycle

# Remote UI navigation
$ python3 scripts/psp_remote.py cursor 290 200
$ python3 scripts/psp_remote.py press cross

# Capture and view screen (pure-Python PNG, no ffmpeg needed)
$ python3 scripts/psp_remote.py screencap /tmp/psp.png

# Upload kernel plugin over WiFi
$ python3 scripts/psp_remote.py upload oasis.prx ms0:/seplugins/oasis.prx

# Check device state
$ python3 scripts/psp_remote.py status
{"kiosk":"tv_guide","free_kb":14230,"max_blk_kb":14100,"frame":8520,"audio_only":false}

# Run a repeatable test sequence from YAML
$ python3 scripts/psp_remote.py sequence scripts/sequences/smoke-test.yaml

# Hard reboot via USB relay actuator when PSP is frozen
$ python3 scripts/psp_remote.py hard-reboot

Proving It: Debugging H.264 Video Decode Remotely

The automation infrastructure was built specifically to solve a hard problem: getting hardware H.264 video decode working on the PSP’s Media Engine. The ME deadlocks after ~70 frames on >480p content (Entry 07), and each debugging iteration required deploying new code, rebooting, navigating to the TV Guide app, tuning a channel, waiting for the deadlock, reading logs, and trying the next fix.

With the automation in place, the entire video decode pipeline was debugged remotely:

• Identified that tv.tuned was being cleared prematurely (a race condition where is_video_playing() returned false during the startup gap before streaming began)
• Discovered the pixel format mismatch: sceMpegAvcDecodeMode(Psm8888) sets 4bpp output but the stride calculations assumed 2bpp, causing garbled video
• Fixed D-cache coherency: the CSC writes via DMA but the CPU read stale cache lines, solved with uncached output buffer pointers
• Deployed and tested the kernel PRX ME watchdog hook (adds a 5-second timeout to WaitEventFlag) — both the PRX and EBOOT updated over WiFi
• Tuned the P/B-frame skipping strategy that achieves indefinite stable streaming
• Found and fixed a crash caused by calling sceMpegDelete on a stuck ME — the solution was leaking the decoder instead of destroying it

Each iteration was: code change → build → TCP deploy → cold reboot → remote navigate to TV Guide → tune channel → screencap to verify → read logs. Average cycle time: under 90 seconds. Over 30 iterations in a single session, zero human interaction with the device.

Closing the Loop: AI-Agent-Driven Hardware Development

What makes this infrastructure unusual is not the individual pieces — TCP servers and remote deployment are standard practice. It’s that the entire system was designed to close the loop for an AI coding agent, removing the human from the edit-compile-deploy-test cycle on physical hardware.

An AI agent (Claude) built the TCP server, deployed it to the PSP, navigated the UI by calculating icon pixel coordinates and injecting cursor+click events, captured screenshots to visually verify rendering, read logs to diagnose bugs, and iterated on fixes — all through the same tool interface it uses for reading files and running shell commands. The PSP appeared to the agent as just another development target, despite being a 2004 handheld with no standard debug interface.

The closed loop is what made the video decode breakthrough possible. Debugging the ME deadlock required testing dozens of hypotheses — cache flush timing, pixel format combinations, stride calculations, kernel hook configurations — each requiring a full deploy-reboot-test cycle. With a 90-second loop and no human in it, the agent could run 30+ experiments in a single session. A manual workflow at 5 minutes per cycle would have taken an entire day.

This pattern generalizes beyond the PSP. Any embedded device with a network connection and a text command interface becomes AI-debuggable. The hard part is not the AI; it’s building the infrastructure that bridges the gap between “run a shell command” and “press a button on a handheld.” Once that bridge exists, the loop is closed, and iteration speed is limited only by compile time and boot time — not by human availability.

Lessons Learned

• WiFi auto-connect is unreliable after cold boot. The WLAN hardware needs 5+ seconds to initialize. Even then, success is intermittent (~80%). The retry logic in server_main catches most failures.
• Kernel PRXs can’t use user-mode network functions. Our first attempt was a kernel plugin that accepted commands via ms0: file IPC. It worked for file operations but returned 0x80410005 for any net syscall. The TCP server had to live in the EBOOT (user mode).
• sceKernelLoadExec doesn’t actually reboot. It restarts the current app but doesn’t reload firmware modules or CFW plugins. We needed scePowerRequestColdReset(0) for a real power cycle that refreshes everything.
• Input injection needs cursor state synchronization. Pushing a CursorMove event isn’t enough — the backend’s internal cursor_x/cursor_y fields must also be updated, or hit-testing reads stale coordinates.
• Arbitrary file upload eliminates the last USB dependency. Once the EBOOT has the upload command, kernel PRX updates, config file changes, and asset replacements all happen over WiFi. USB is only needed for the initial bootstrap.
• There is no substitute for physical access. Software reboot covers 90% of cases, but firmware hard-locks require a physical power cycle. The actuator closes the last 10%.
• Simple protocols beat complex ones for AI agents. One text command per TCP connection, one text response. No state, no sessions, no authentication. An AI agent can drive it with echo and nc — tools it already knows how to use.
